Coconut Oil Extraction Process Explained for Efficient Industrial Production

Understanding Coconut Oil Extraction Process and Machine

Overview of the Industrial Coconut Oil Extraction Process

The coconut oil extraction process in industrial production involves a systematic sequence of mechanical, thermal, and filtration operations designed to achieve maximum yield and purity. In most modern plants, the process efficiency can exceed 92–95% oil recovery, depending on raw material quality and process control precision.

The process begins with raw coconut preparation, where mature coconuts are de-husked, deshelled, and parched. Each ton of coconuts typically yields 300–350 kg of dried copra. The drying temperature is maintained between 60–70°C, ensuring optimal moisture reduction to around 6%, which is ideal for oil pressing.

Next comes mechanical crushing and drying, in which pre-treated copra is ground into smaller flakes to improve the oil release rate. The flakes pass through controlled heating stages where the temperature is kept below 80°C to preserve natural antioxidants.

Finally, the oil extraction and filtration phase employs screw presses or expellers capable of handling 2–10 tons/hour, followed by a filtration system with 5-micron precision filters to remove impurities. The resulting crude oil is then ready for refining or direct packaging, depending on production goals.

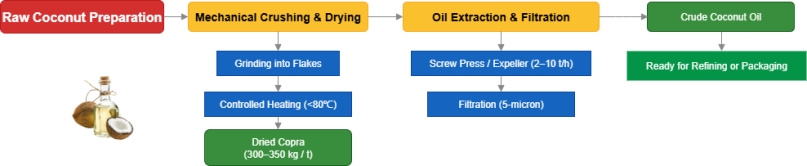

Step by Step Coconut Oil Manufacturing Process Design

The combination of proper pretreatment, temperature control, and filtration determines the efficiency of the coconut oil extraction stages.

Upgrade your production line with our precision-engineered coconut oil processing systems – reach out to our design team for detailed plant integration support.

Key Equipment and Technologies for Higher Coconut Oil Extraction Efficiency

The heart of an industrial coconut oil extraction process lies in the technologies and equipment used. Selecting the right coconut oil making machinery directly impacts both throughput and product consistency.

Mechanical Pressing vs. Centrifugal Extraction

Mechanical pressing typically involves double-stage screw presses that generate pressures exceeding 100 bar, capable of achieving oil recovery up to 90%. However, they require frequent maintenance every 800–1,000 operational hours.

Centrifugal extraction (Virgin coconut oil extraction), by contrast, uses high-speed separators operating at 3,000–6,000 rpm, effectively separating oil from solids and moisture without significant heat exposure. This method preserves up to 98% of the oil’s lauric acid content, a key indicator of oil quality.

Thermal vs. Cold Pressing Efficiency

Thermal treatment accelerates oil extraction but may cause oxidation if the temperature exceeds 85°C. Cold pressing maintains temperatures below 50°C, ensuring superior oil clarity and 10–15% higher antioxidant retention. Therefore, many modern plants integrate hybrid systems—controlled thermal preheating followed by cold pressing—to balance speed and quality.

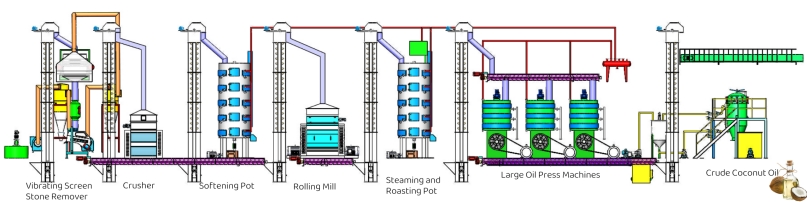

Large Coconut Oil Manufacturing Plant Layout 3D Design

Automation and Process Monitoring Integration

Key Efficiency Enhancers Include:

• Energy Recovery Units: Reduce thermal energy use by 15–20%.
• Automated Moisture Control: Ensures consistent copra dryness.
• Centrifugal Purification: Improves oil clarity and shelf life.
• Digital Twin Simulation: Optimizes line configuration before installation.

Integrating digital automation into coconut oil pressing technology ensures consistent throughput and superior yield.

Boost extraction efficiency and minimize energy costs – contact our process engineers to design your optimized coconut oil extraction line today.

Coconut Oil Mill Process Control to Ensure Oil Quality and Stability

Maintaining coconut oil purity requires strict process control throughout production. Temperature stability should remain within ±2°C, while humidity in processing zones must be controlled below 60%.

Oil quality is verified using NIR testing and chromatographic purity analysis, ensuring lauric acid concentration above 45% and free fatty acid levels below 0.2%.

Regular sanitation schedules—every 12–16 hours—prevent microbial contamination. Equipment surfaces are maintained under GMP (Good Manufacturing Practice) standards to ensure hygienic compliance.

Enhance your oil quality assurance with automated purity testing and continuous process control solutions from our technical experts.

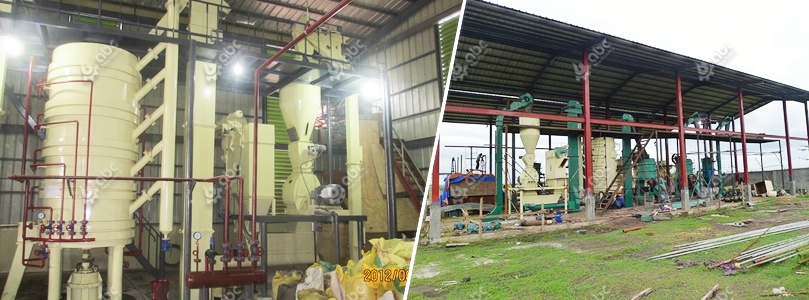

Industrial Coconut Oil Processing Project Implementations and Customized Solutions

Coconut Oil Production ​Plant Project Report

Turnkey coconut oil extraction plant demonstrate how efficient engineering transforms production economics. A recent 25-ton/day facility reduced power consumption from 90 kWh/ton to 72 kWh/ton after process reconfiguration.

In another case, a mid-scale factory achieved 15% higher throughput by integrating centrifugal systems and automatic filtration.

Each customized coconut oil extraction solution adapts to plant layout, local energy availability, and raw material quality.

Our engineering team designs modular systems that integrate pre-cleaning, pressing, and refining into compact layouts, simplifying installation and scaling.

Get your customized coconut oil extraction plant layout and technical design consultation from our industrial engineering specialists today.

Coconut oil extraction remains a cornerstone of tropical agro-industrial production, and the continuous evolution of the coconut oil extraction process will define competitiveness in the years ahead.
