The goal of this column is to offer clear, practical guidance on every stage of soybean oil extraction, helping readers understand the technologies, equipment choices, and investment considerations behind a modern soybean oil mill plant. It provides an overview of the full production chain—from seed preparation and extraction to refining, energy management, and by-product utilization.
Explore the articles below to gain deeper insights into the planning, setup, and execution of soybean oil processing projects:
Soybean Oil Extraction Engineering Principles And Processing Line Design
Soybean oil extraction is the foundation of modern edible oil manufacturing, and a well-engineered plant typically integrates four major stages: pretreatment, mechanical pressing, solvent extraction, and refining. In industrial facilities handling 200–1,000 tons per day, process design strongly influences yield, energy consumption, and overall investment structure.
Pretreatment And Conditioning Engineering
Pretreatment ensures soybeans reach optimal physical conditions for downstream steps. A typical pretreatment line includes cleaning, dehulling, crushing, flaking, and softening. Cleaning systems usually remove 95–98% of impurities to protect equipment. Flake thickness is controlled between 0.25–0.35 mm, directly impacting extraction efficiency. Moisture is adjusted to 10–12%, and conditioning temperature is maintained at 60–70°C to ensure structural plasticity.

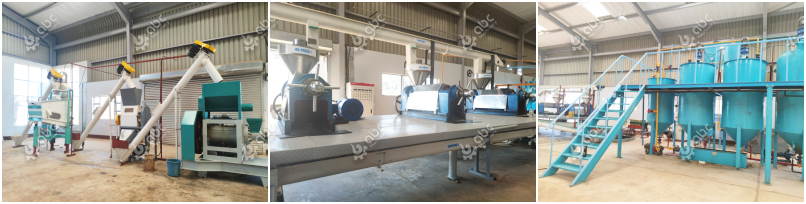

Soybean Oil Production Line Workshop: Pretreatment, Pressing, Refining Equipment
Mechanical Pressing And Solvent Extraction
Mechanical pressing extractor recovers approximately 8–12% of the total oil, while solvent extraction systems remove the remaining 18–20%, achieving a total residual oil in meal of ≤1%. Extraction engineering relies on counter-current solvent flow, maintaining a solvent ratio of 1:1.2 to 1:1.6, depending on plant configuration. The desolventizer-toaster (DT) typically operates at 105–110°C with steam input ranging between 180–240 kg/ton of raw material. Solvent recovery reaches 95–98% in optimized systems.
Oil Refining Integration And Impact On Upstream Design
Refining requirements influence pretreatment and extraction decisions. For instance, crude soybean oil with phospholipid content of 2% demands adequate degumming, and oil with FFA above 0.6% increases caustic consumption during neutralization. Plants targeting edible-grade output typically require color levels below 10 R (Lovibond) and peroxide values below 5 meq/kg after deodorization. Engineering choices upstream must ensure crude oil consistency to reduce refining loss (usually 0.8–1.5% of total oil).
Process Route Comparison Table
| Process Route | Oil Yield (%) | CapEx Level | Energy Demand | Typical Capacity |
|---|---|---|---|---|
| Press Only | 15–18 | Low | Low | 1–30 TPD |
| Press + Extraction | 18–20 | Medium | Medium | 50–500 TPD |
| Full Extraction | 19–20+ | High | High | 100–1,500 TPD |
Read More: Soybean Oil Extraction Methods Guide>>
Pretreatment System Stability And Yield Optimization
Well-designed pretreatment ensures stable flakes, consistent moisture, and minimal nutrient damage. Plants processing 200 TPD or more often adopt variable-frequency conveyors and magnetic separators with 8,000 Gauss strength. These engineering controls maintain uniform flow and reduce manual checks by more than 30%. They also stabilize the extraction system, which depends heavily on predictable flake quality.
Softening equipment equipped with automatic temperature control maintains ±2°C variation, reducing flake breakage by 10–15% and increasing extraction yield stability.
Engineering alignment between pretreatment thickness, solvent flow, and steam availability significantly affects extraction stability and overall yield.
Enhance your soybean oil extraction performance — Contact our engineering team to receive a customized process design with full mass-energy balance evaluation.

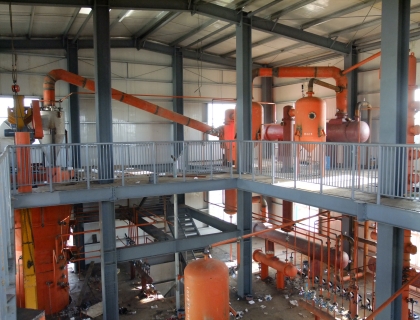

Large Solvent Extraction Plant for Soybean Oil and Protein Production

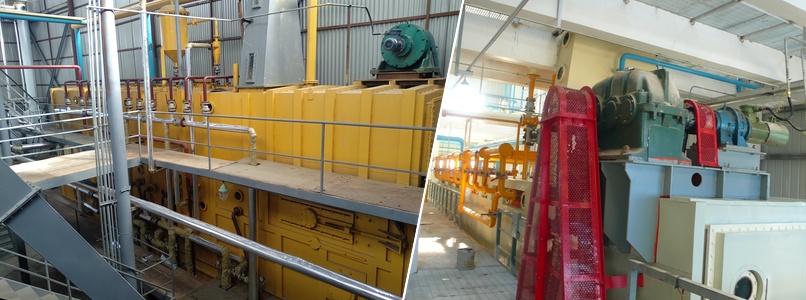

Key Engineering Elements For Industrial-Scale Soybean Oil Extraction Projects
Industrial soybean oil projects require precise equipment coordination and strict control of operating parameters. The ability to integrate soybean oil extraction concepts with practical engineering considerations determines long-term operational success.
Optimal equipment configuration starts with pretreatment lines rated at 3–20 tons/hour, followed by extractor models designed to process 30–500 tons/day depending on plant size. Steam consumption generally falls between 280–320 kg/ton, while electrical demand commonly ranges from 22–28 kWh/ton of soybeans. These numbers help investors evaluate transformer sizing, boiler capacity, and process tank volumes.
Extraction efficiency is influenced by several parameters, including flake thickness, solvent temperature (typically 45–55°C), and extractor residence time (60–90 minutes). Plants operating in humid or tropical regions may require upgraded ventilation systems to maintain solvent vapor concentration below 300 ppm, improving worker safety and reducing solvent loss by up to 12% in some installations.
Accurate sizing of the desolventizer, economizer, and condenser ensures stable energy recovery and optimized operating costs.
Streamline your soybean oil plant engineering — Speak with our process experts to develop a full layout and utility consumption plan.
Soybean Oil Refining Process And Quality Control System
The soybean oil refining steps include degumming, neutralization, bleaching, and deodorization. Degumming typically reduces phosphorus to ≤10 ppm, while bleaching earth consumption ranges from 0.5–1.2% of oil weight. Deodorization towers operate at 240–260°C, achieving FFA levels of ≤0.05%. These refining steps ensure edible oil quality and align with edible oil quality control requirements such as color, flavor stability, and oxidation resistance.
Improve refining consistency and product quality — Consult our engineers to configure an optimized refining system.
Investment, Operation, And Sustainability In Soybean Oil Processing Plants
A soybean oil plant’s investment framework involves land, steel structure, equipment procurement, utilities, and installation. Typical CapEx ranges from USD 4–12 million for 100–300 TPD facilities. Operating cost contributors include power, steam, solvent loss, labor, and maintenance. Energy-saving technologies such as waste-heat recovery can reduce thermal consumption by 8–15%. Sustainability systems include wastewater treatment rated at 5–10 m³/hour, dust control units capturing >95% particulates, and VOC treatment with efficiency above 90%.
Adopting integrated environmental management reduces compliance risks and improves long-term operational stability.
Build a cost-efficient and sustainable soybean oil extraction plant — Contact us to receive a full investment and environmental engineering proposal.
